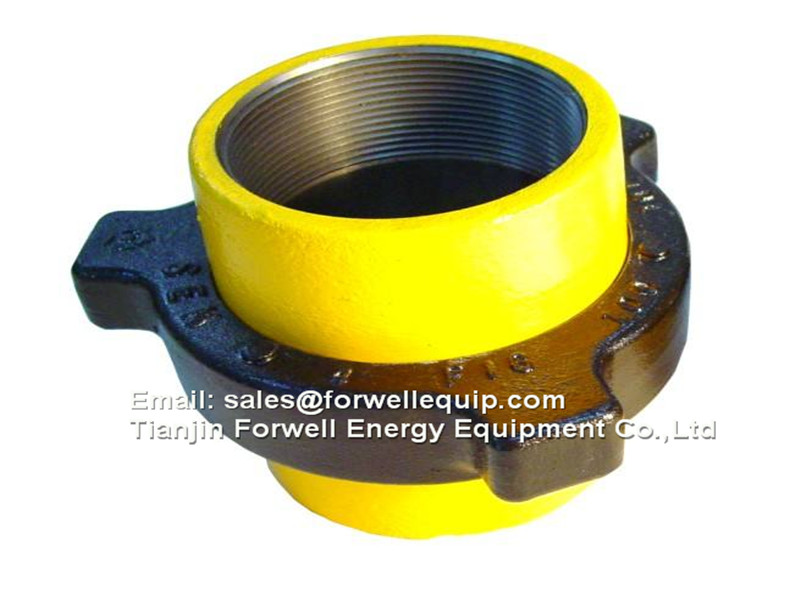

Union Hammer 2" NPT 2000# Threaded Ends
High pressure hammer union is used in cement truck, fracturing truck, manifold, pipeline and other high-pressure equipment. It is an important accessory for transporting oil, water, fracturing fluid and mixed liquid. This product is made of high-quality alloy steel by casting and finishing. It has excellent mechanical properties, sealing properties and different pressure levels. It is an ideal accessory for oil field drilling and production.Contact:Tianjin Forwell Energy Equipment
Working temperature of high pressure union is - 29 ℃ ~ + 80 ℃
There are 35MPa and 70MPa series of high-pressure unions, and the specifications and models are fig602, fig1002, fig1003, fig1502, fig2002 and fig2022 series. In order to facilitate identification, unions of different pressure levels have different color identification, and obvious specification connection form and pressure grade mark are shown on the wing nut.
There are three types of high pressure union connection: thread type, welding type and anti hydrogen sulfide gas.
High pressure union type: 100 type 200 type 206 type 207 type 211 type 300 type 400 type 402 type 600 type 602 type 1002 type 1003 type 1502 type 2002 type 2202 solid control system quick connection assembly (pneumatic tube union) telescopic steel union
